1' Feet, Black RG6 Coaxial Cable with rubber booted - Weather Proof Indoor / Outdoor Rated Connectors, F81 / RF, Digital Coax for CATV, Antenna, Internet, Satellite, and more

Includes: 1 one coaxial Cable with f-pin connectors & US manufacturers warranty for quality assurance

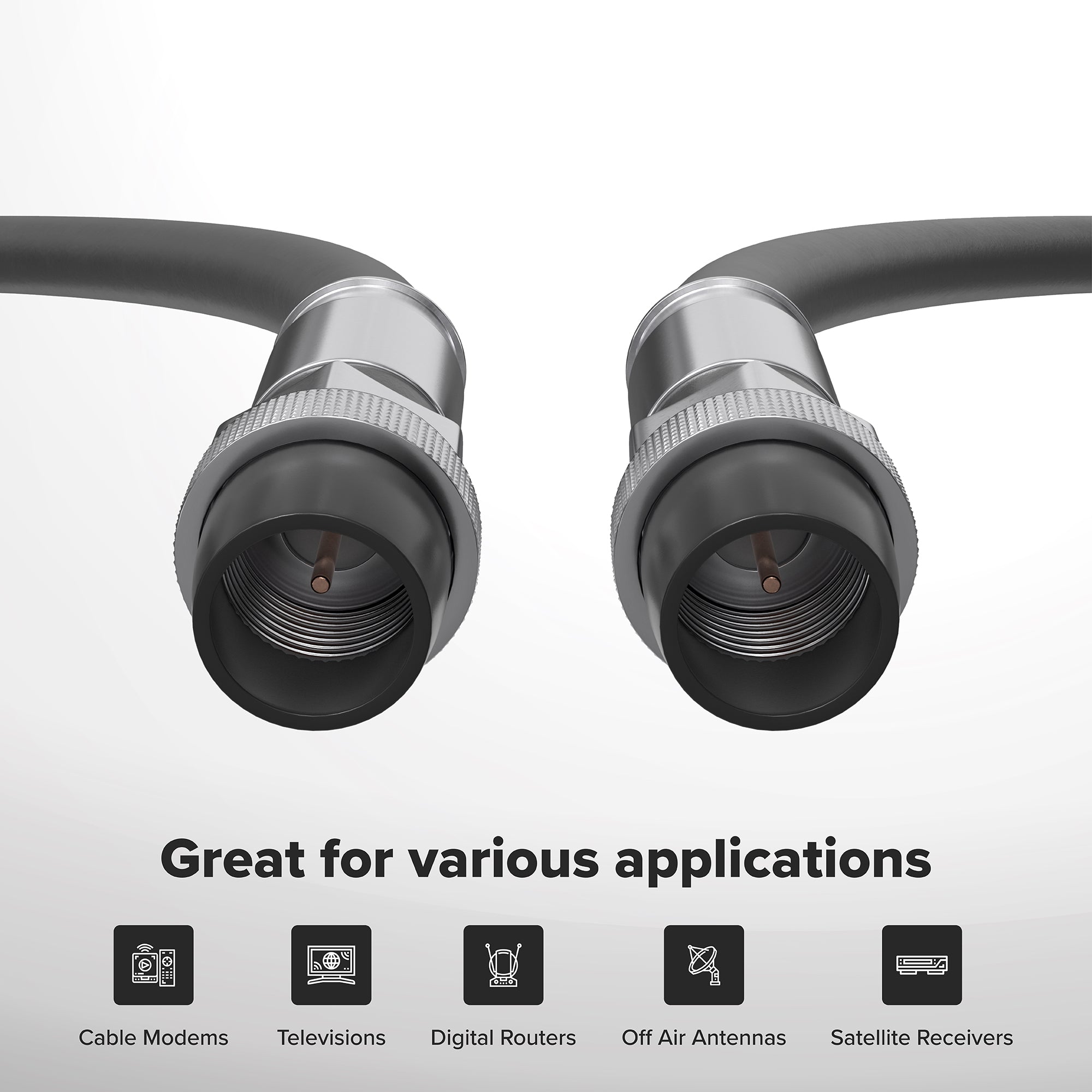

Tested and approved for the use with Cable Modems, Televisions, Satellite Receivers, Off Air Antennas - including HD Antennas; Compatible with: DIRECTV, Dish Network, Comcast, Charter, Verizon FiOS, AT&T, U-Verse, FTA, OTA, HughesNet, Wild Blue, Excede, Cell phone wireless extenders, and many other services and providers.

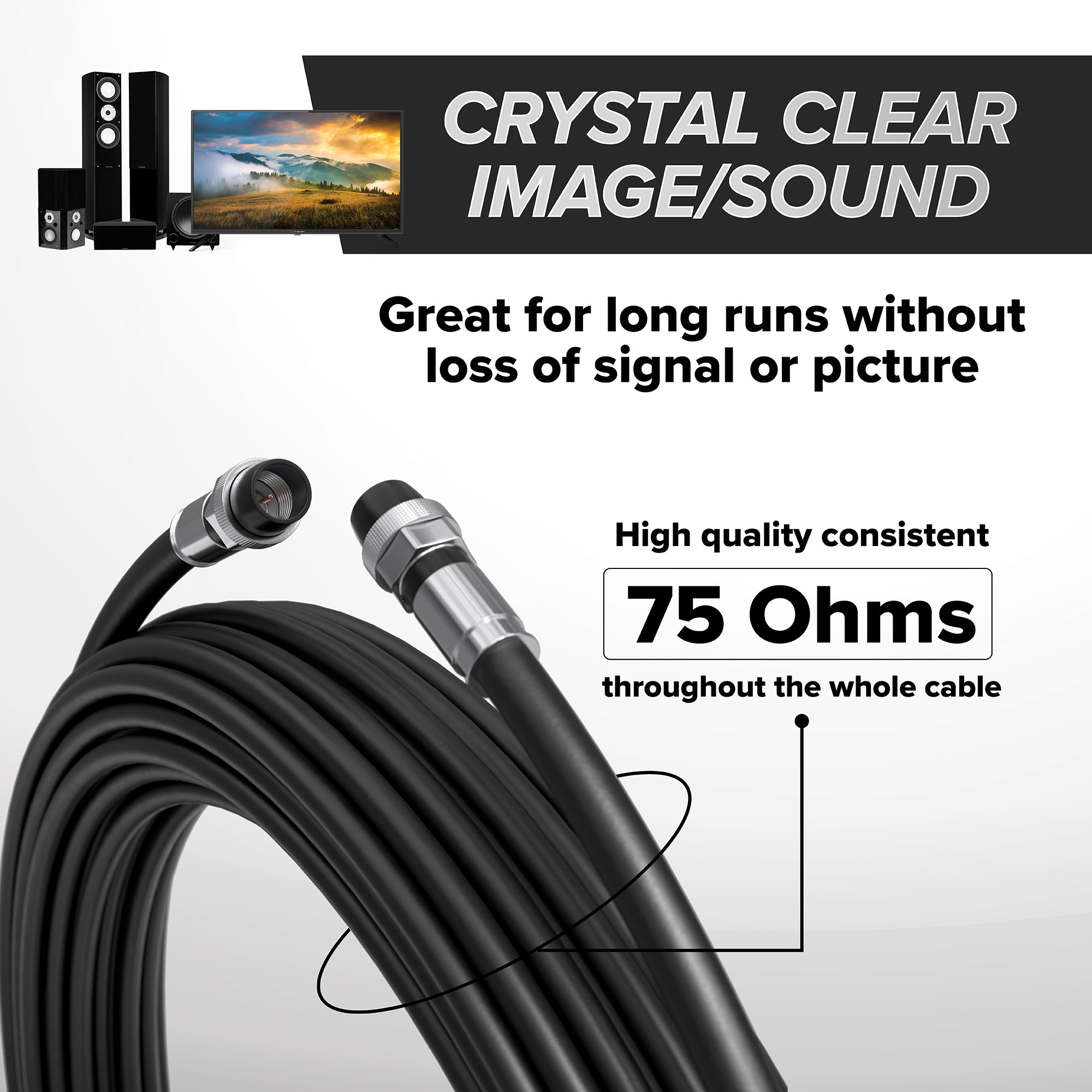

Low loss Cable for exceptional signal and picture quality, even over long runs. Works great indoors and outdoors, with a highly durable weather proof and UV resistant PVC outer jacket. High quality consistent 75 Ohms throughout the whole cable.

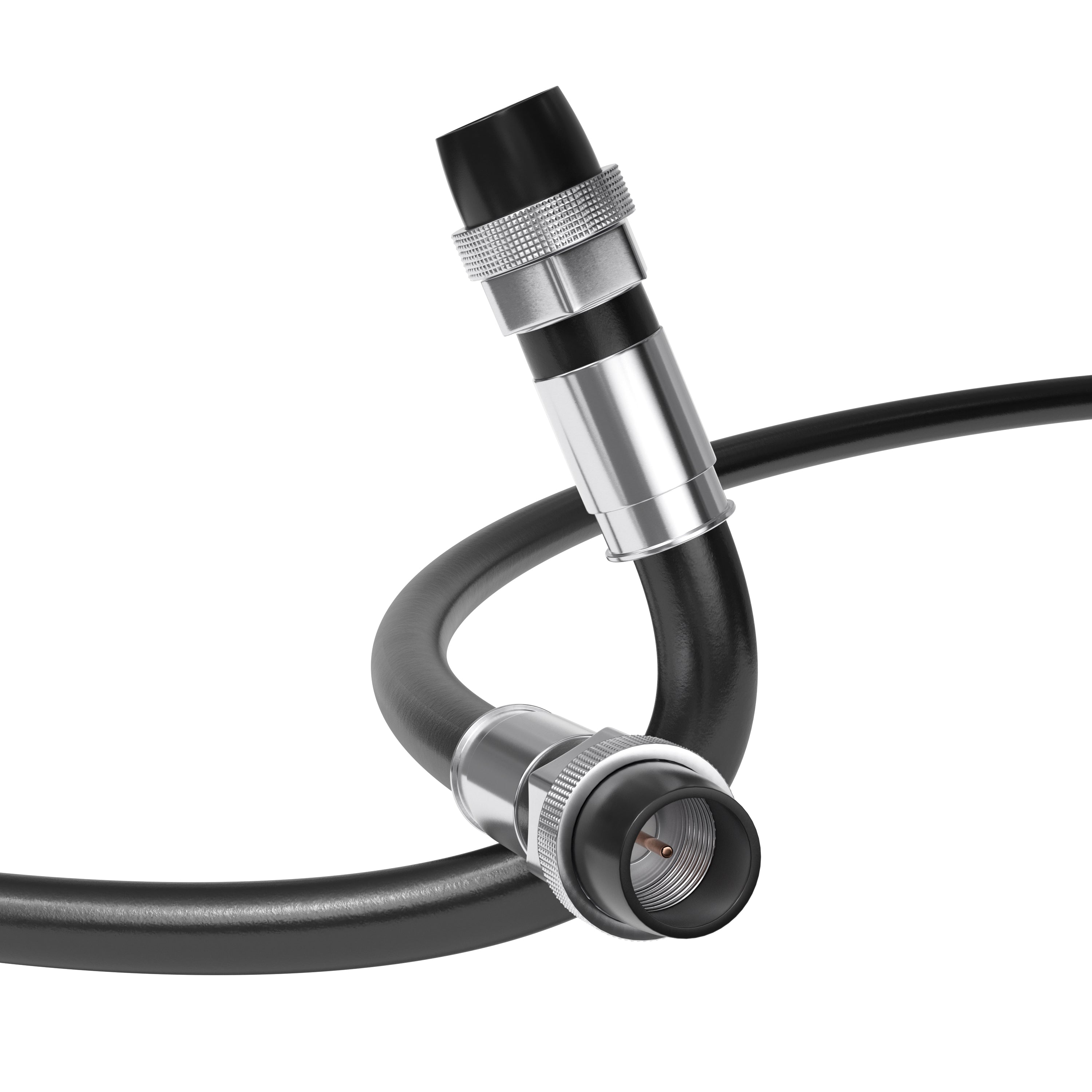

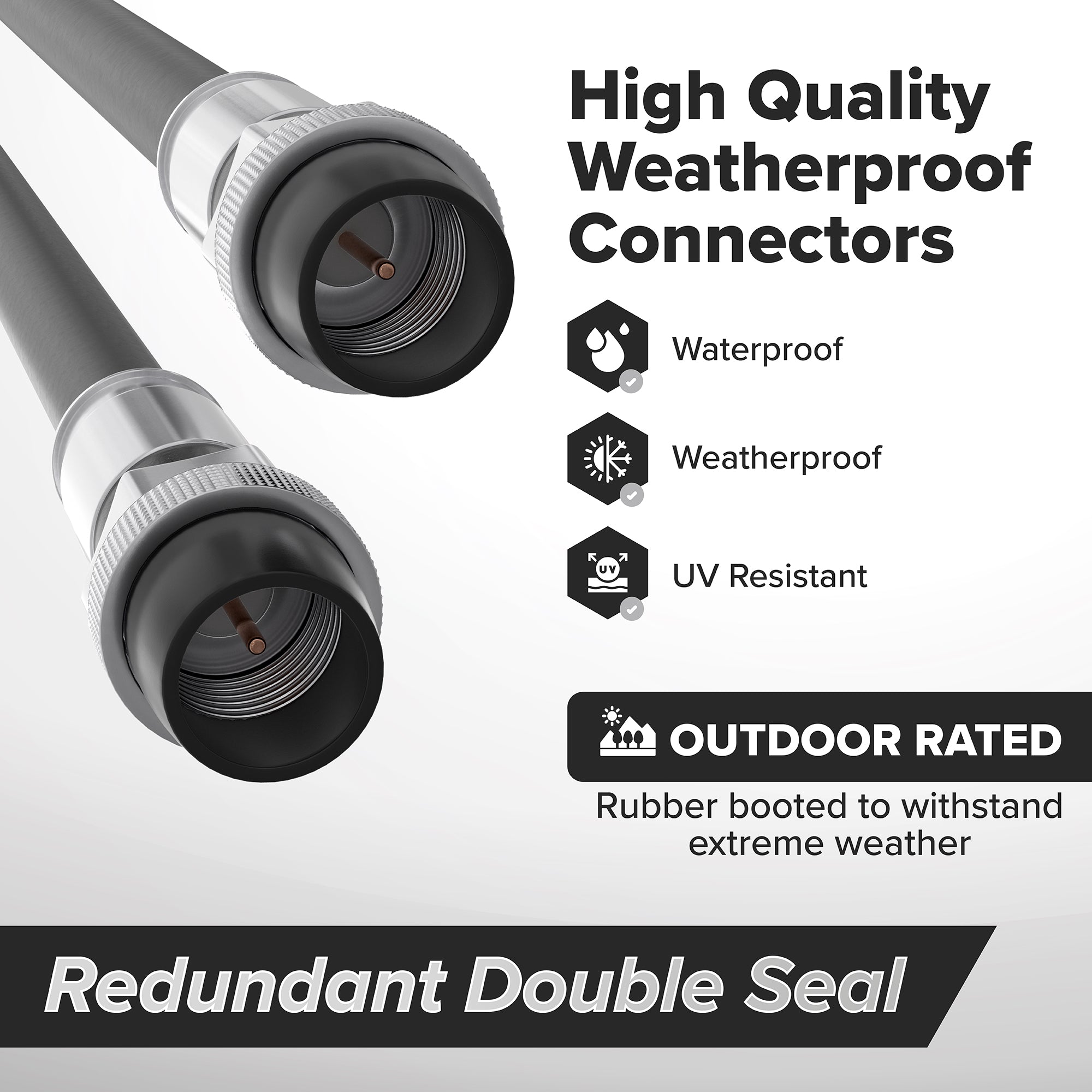

High quality, weather proof, outdoor rated connectors will not pull off, break, lose signal, or come lose and are water proof using a redundant double seal at each end of the connector. Each Connector has an attached rubber weather boot to ensure there is never any moisture inside the connector.

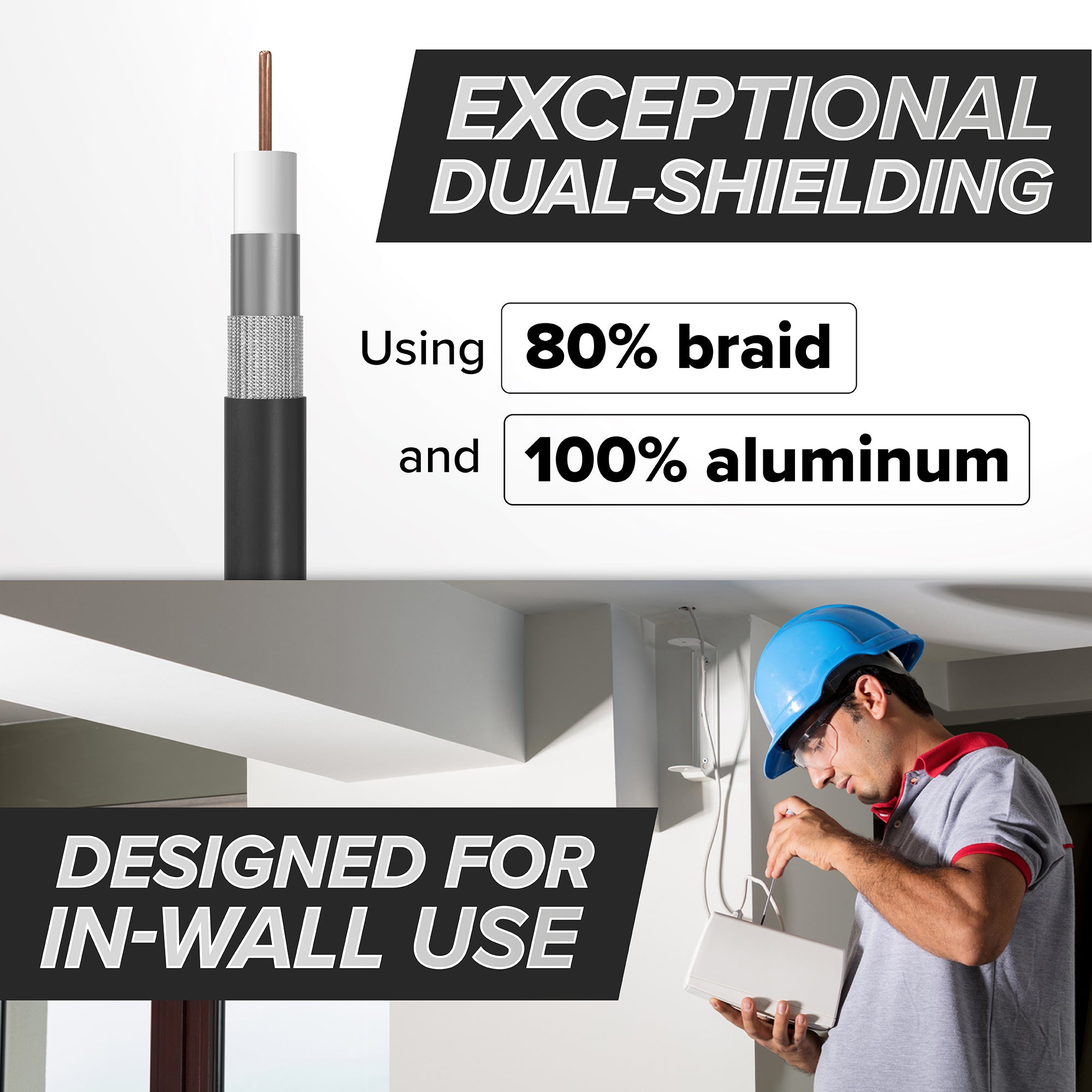

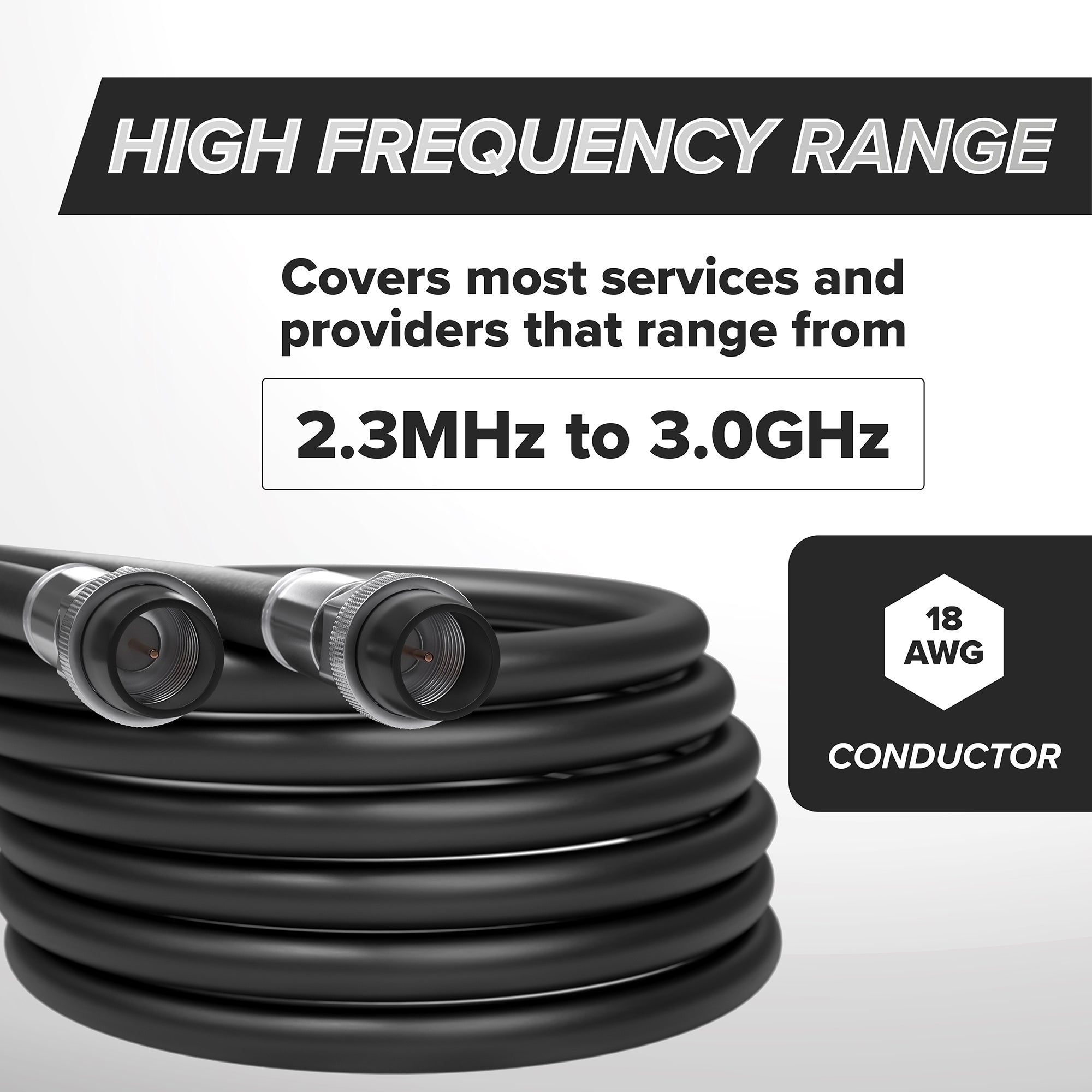

High frequency range with an 18 AWG center conductor to cover almost all services and providers that range from at least 2.3MHz to 3.0GHz, with exceptional shielding - using 80% braid and 100% shield.

Technical Specifications:

Cable End #1: Coaxial F Pin Male

Cable End #2: Coaxial F Pin Male

Cable Length: 1 Feet

Cable Length: 12 Inches

Cable Length: 0.3 Meters

Cable Length: 0.3 Yards

Cable Shape: Round Cable

Capacitance: 16.2 Farad

Center Conductor Gauge: 18 AWG

Center Conductor: Copper-Clad Steel

Coaxial Frequency Range: 2.3 MHz - 3.0 GHz

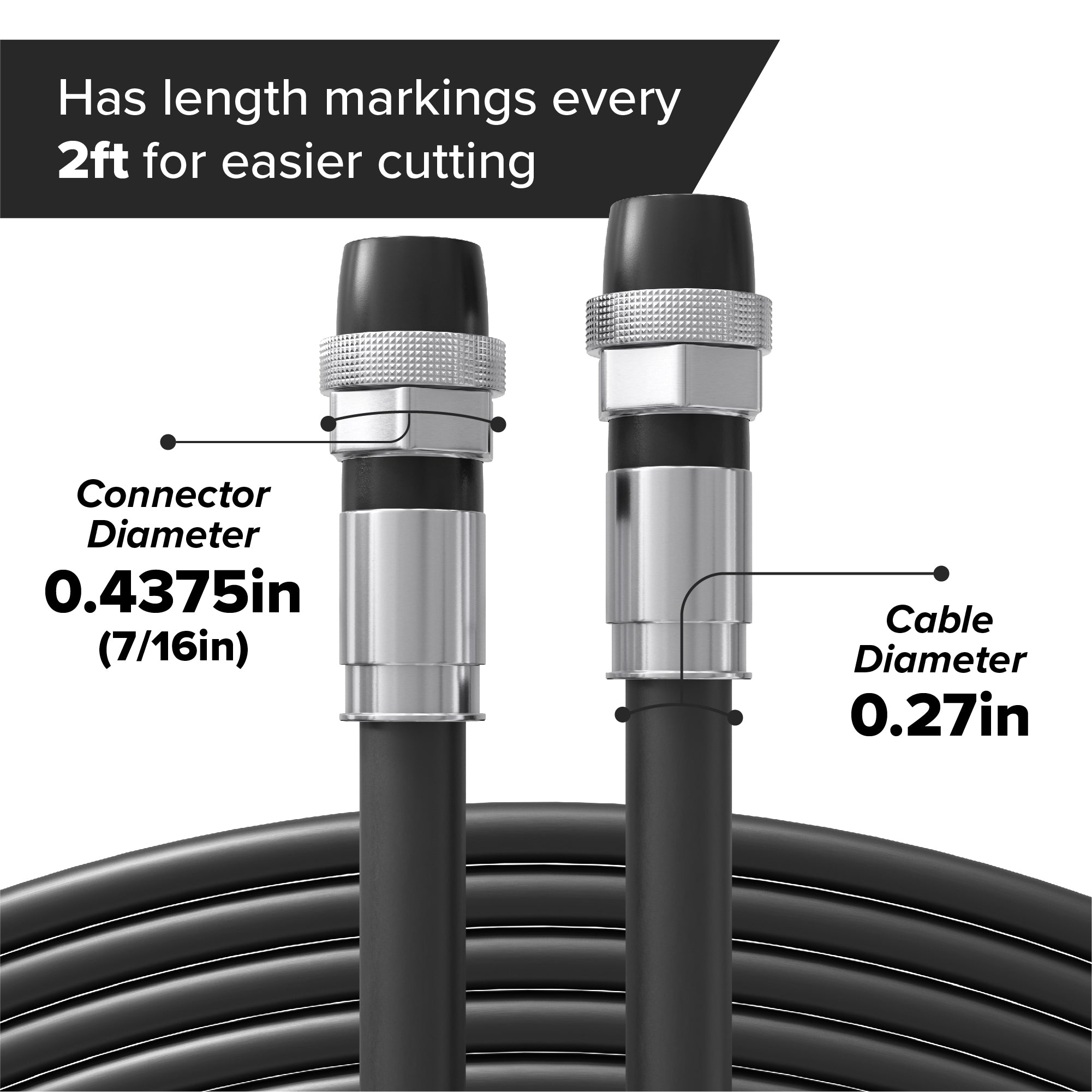

Coaxial Size: 0.25 (1/4) Inch

Coaxial Size: RG6

Color: Black

Connection Split/Duplication: One to One (1:1)

DC Resistance: 6.54 Ohm

Full Cable Length: 1 Foot (0.3 Meter)

Impedance: 75 Ohms

Jacket Material: PVC

Maximum Frequency: 3.0 GHz

Output Voltage: 60 V

Shielding Material: Aluminum Magnesium Alloy

Temperature Range (C): -40 to 75 C

Temperature Range (F): -40 to 167 F

Type: Coaxial F Male-Male

UV Protected: Yes

THE CIMPLE CO, A Family Company located in the USA, is proud to manufacture this high quality and durable coaxial cable. This cable is available in Black and White, and comes in lengths from 1 foot to 200 feet (including our most popular lengths of 10 feet, 25 feet, 50 feet, 75 feet, and 100 feet). The center conductor is made of high grade copper coated steel that has been swept to 3.0GHz, making this a great application for Satellite, Cable, Wireless (including cell services), and Communication uses. With very low signal attenuation (2.75dB at 750MHz for our 50ft cable) it can be used on long runs without the loss of signal or picture. We use high grade 360 degree weather proof compression connectors to ensure that this cable remains water and weather proof, without the loss of any signal. This ensures that the ends can withstand pulling, weather, extreme hot and cold (rated up to 167 degrees F). The coaxial shielding is 80% aluminum magnesium alloy braid and 100% solid aluminum foil (including an 18% overlap) to ensure that there is no interference from neighboring or rouge signals. The outer jacket is a flexible UV resistant PVC and has been tested to be used in many extreme conditions for use both inside and outside. The dielectric center is made from gas injected foam PE and has an almost perfect consistency of 75 Ohms +/-3 throughout the entire length of the coax cable. The outside diameter of the cable is 0.27 inches, about 6.85 mm, with the connectors being slightly larger at .4375 (7/16) of an inch (11.11 mm). The cable also has length markings every two feet on the side to make it easier to cut to length, if you need a shorter wire. We also offer a repair and splice kit for those who would like to cut and reinstall the ends on the wire. The kit comes complete with instructions and free technical support. We back our product 100%, with free returns, as well as free technical and customer support.
